Why is there a minimum output rate?
The micro-controller performs task once after the other. It must complete the sampling of all configured channels before sending another serial output out.

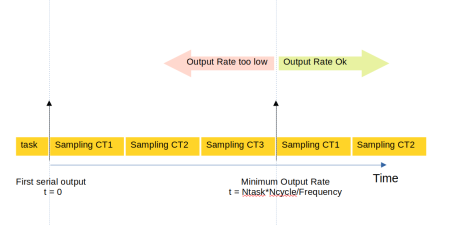

The example below show the task scheduling where 3 channels are computed. The output rate must be larger than the time it takes to sample all channels.
