MCP3208 Tester

From lechacal
Jump to: navigation, search

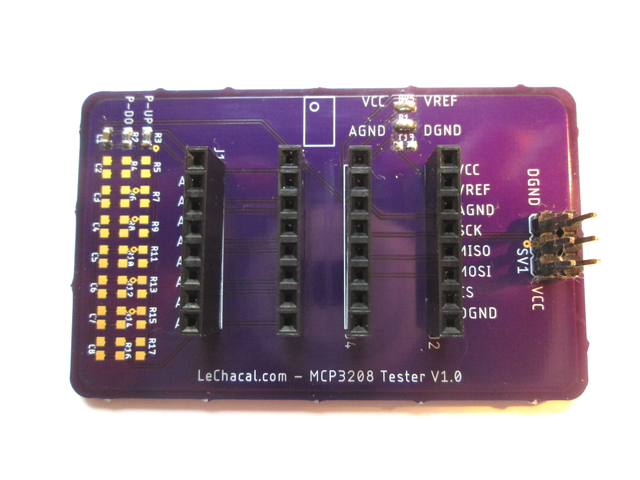

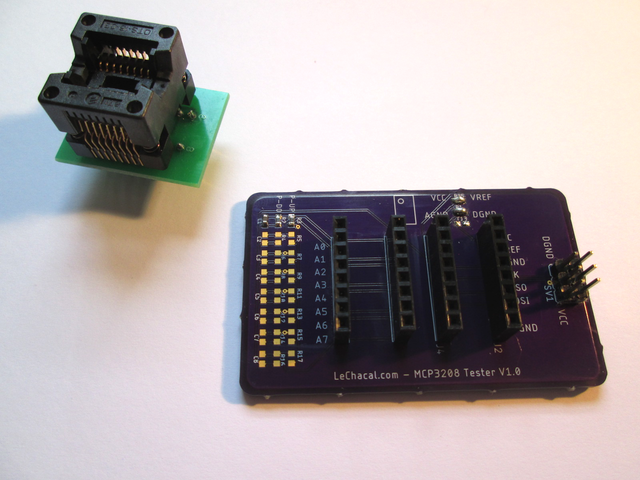

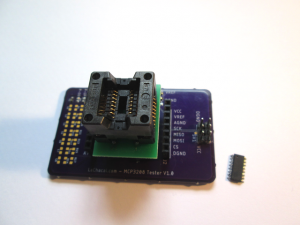

This is a MCP3208 tester board. It comes with a SOP16 socket.

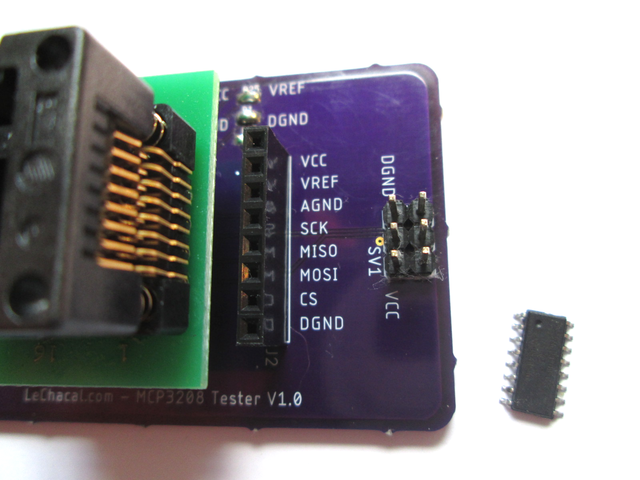

All pins are available to pick with jumper wires using two 8 pins socket header.

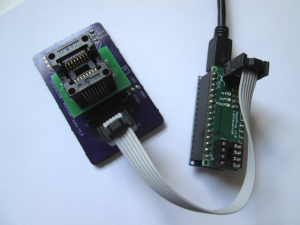

A 6 pins SPI port is available for direct connection with other systems. We recommend the NanoProg to easily connect an Arduino Nano to the tester.

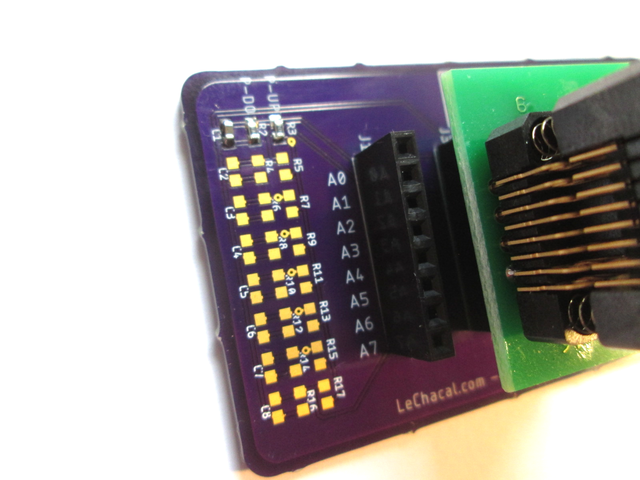

On the analog input side there is provision for pull-up and pull-down 0603 resistors to make voltage dividers on each channels.

IMG 0043 small.pngIMG 0046 small.png

IMG 0041 small.pngIMG 0042 small.png

IMG 0045 small.pngIMG 0044 small.png
