Pulse Motor

From lechacal
Jump to navigation Jump to search

Assembly

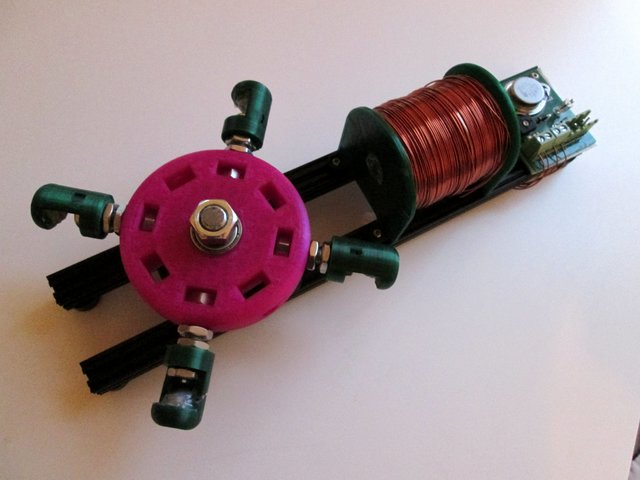

Classic Bifilar

4 Magnets
750 wounds Bifilar coil

4 coils

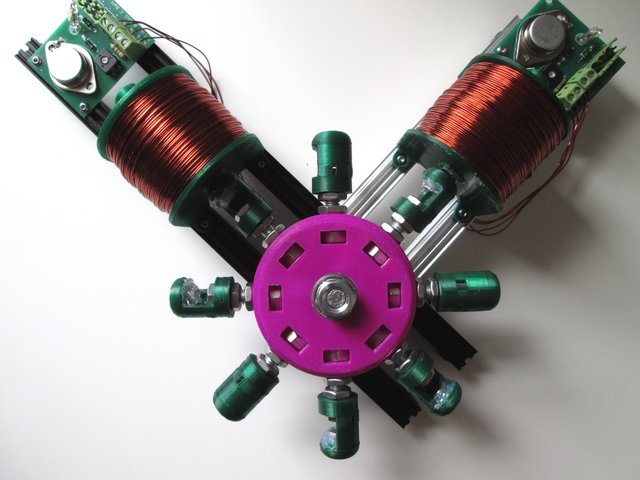

8 Magnets

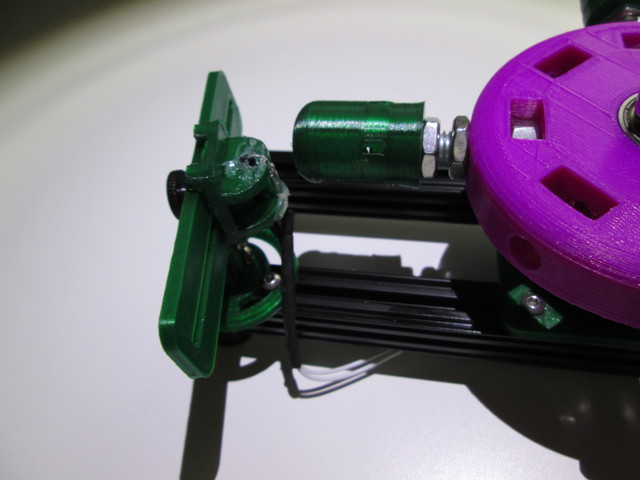

Reed Switch

Reed switch with adjustable support. Accurate positioning of the switch for timing control.

Right angle extension

Extended Arms

Using 120mm M8 threaded rod. Rotor diameter magnet to magnet is 320mm.

Individual Parts

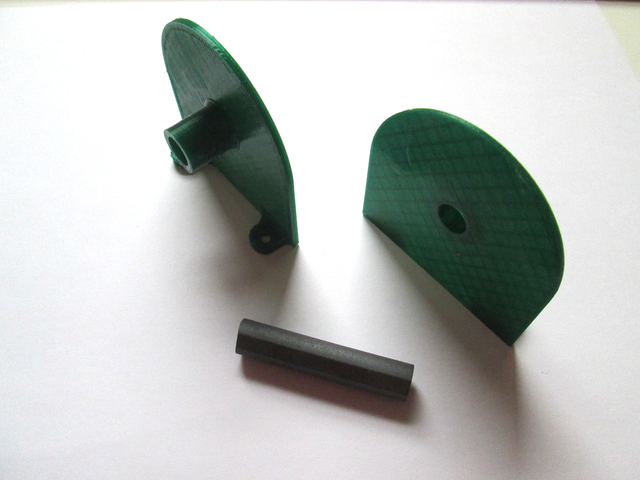

Coil flange
