TQFP32 Arduino Socket programmer

From lechacal
Jump to: navigation, search

Link to the shop

The TQFP32 Arduino socket programmer offers a convenient way to program atmega328p-au microcontrollers with the Arduino IDE

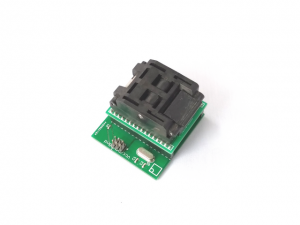

IMG 1932 small.png IMG 1933 small.png IMG 1934 small.png

Programmers

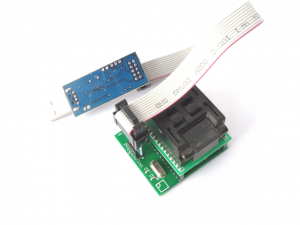

An avr programmer with 6 pin ISP connector is required for use with this unit.

We recommend the NanoProg_v1 for this. However any other avr programmer with ISP will also work.

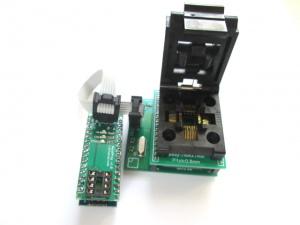

IMG 1930 small.png IMG 1929 small.png IMG 1931 small.png

Usage

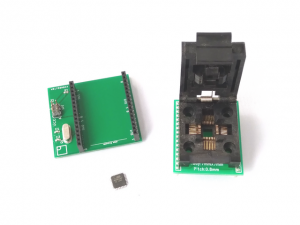

Connect the socket on the main board. Make sure to insert it with the opening side on the lower side of the board. See the 'Opening side' inscription.

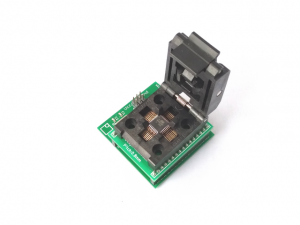

Open the socket and insert the atmega328p-au. The dot mark being at the top left as shown on the square drawn on the board.

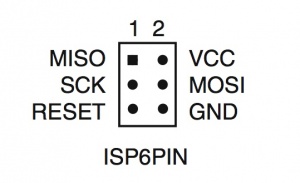

Connect your favorite avr programmer to the 6pin ICSP connector. Make sure that Vcc and Gnd do match on both boards.
