ZMPT101B Module 1x v1

From lechacal
Jump to: navigation, search

Link to the shop.

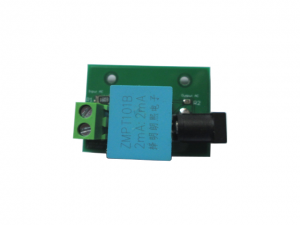

ZMPT101B Module converts AC Voltage to lower AC Voltage suitable for connection with our RPICT units.

This module shows greatly improved linearity features.

IMG 2117 small.png

Compatible boards

We are slowly converting all our RPICT units for zmpt101b compatibility.

For now only these boards listed below have zmpt101b support


  • Input AC has terminal connector

IMG 2119 small.png

  • Output AC has Jack power type for direct connection to RPICT with a Power Jack cable.

IMG 2118 small.png


  • Dimensions: 45x30mm height 23mm.
  • 2 Holes 25mm apart for Din Rail mounting.

IMG 1942 small.png

Technical Spec

Name Input Resistor Output Resistor (Ω) Sensitivity Range (rms) Comment
ZMPT_1X_225 160 kΩ 100 Ω 0.625 mV/V 225V Used to cover both 110 and 220V.
ZMPT_1X_140 100 kΩ 100 Ω 1 mV/V 140V For 110/120V use.
ZMPT_1X_280 200 kΩ 100 Ω 0.5 mV/V 280V For 220/240V use.
