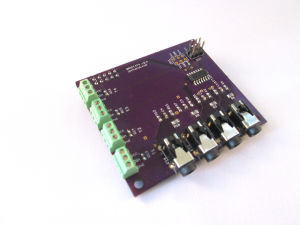

RPICT4T4

Link to shop

This page is for board specific information. More information can be found on the generic page for RPICT series.

• 4x AC Current Sensors
• 4x DS18B20 Temperature Sensors
• Attiny84 Mcu

Compatibility

Version	Compatible?
Raspberrypi 1 A	No
Raspberrypi 1 B+	Yes
Raspberrypi 2 B	Yes
Raspberrypi 3 B	Yes
Raspberrypi 3 B+	Yes

Current Sensor

Recommended sensor: SCT-013-000

Default Voltage for power calculation: 240V (can be modified in firmware).

For AC current only.

Temperature Sensor

Connector: 3.5mm Jack

The intended temperature sensor is the DS18B20.

The connector is a 3 way screw terminal connector.

Configuration

Starting from sketch version 1.4 the RPICT4T4 is configured over serial.

See general instructions for configuration over serial.

Emoncms Config (Emonhub)

For default configuration.

 [[11]]
   nodename = RPICT4T4
   hardware = RPICT4T4
   [[[rx]]]
       names = Power1, Power2, Power3, Power4, T1, T2, T3, T4
       datacode = 0
       scales = 1,1,1,1,1,1,1,1
       units = W,W,W,W,C,C,C,C

Python Example

Please note the uploaded sketch must have CSV enabled. The example script below will be a good starting point.

First of all make sure you have python-serial package installed

$ sudo apt-get install python-serial

Then copy the following into an executable file and run it.

#!/usr/bin/python
import serial
ser = serial.Serial('/dev/ttyAMA0', 38400)

try:
       while 1:
               response = ser.readline()
               z = response.split(",")
               if len(z)>6:
                       print "Power 1: %s Watts" % z[0]
                       print "Power 2: %s Watts" % z[1]
                       print "Power 3: %s Watts" % z[2]
                       print "Power 4: %s Watts" % z[3]
                       print "Temperature 1: %s C" % z[4]
                       print "Temperature 2: %s C" % z[5]
                       print "Temperature 3: %s C" % z[6]
                       print "Temperature 4: %s C" % z[7][:-2]
except KeyboardInterrupt:
       ser.close()

Files

Sketch version 1.2

Sketch version 1.3

Sketch version 1.4
