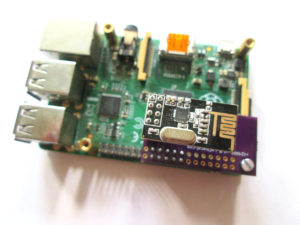

The RPIRF24 is an adaptor to connect nRF24L01 module to a raspberrypi.

Connection is made via the SPI port of the raspberrypi.

Setup for Raspbian

Open raspi-config then enable spi in the menu.

Then the following commands should be run:

sudo adduser pi spi

mkdir rf24libs
cd rf24libs
git clone https://github.com/TMRh20/RF24
git clone https://github.com/TMRh20/RF24Network
git clone https://github.com/TMRh20/RF24Mesh

cd RF24
sudo make install
cd ../RF24Network
sudo make install
cd ../RF24Mesh
sudo make install

cd ./examples_RPi/
