ZMPT101B Module 1x v2

Link to the shop.

ZMPT101B Module converts AC Voltage to lower AC Voltage suitable for connection with our RPICT units.

This module shows greatly improved linearity features.

ZMPT module for single phase raspberrypi smart meter

Compatible boards

Any RPICT unit with a voltage input can support ZMPT module provided the unit has been specifically purchased with ZMPT support. Make sure this is ordered right when placing the order in the shop.

Connections

  • Input AC has terminal connector

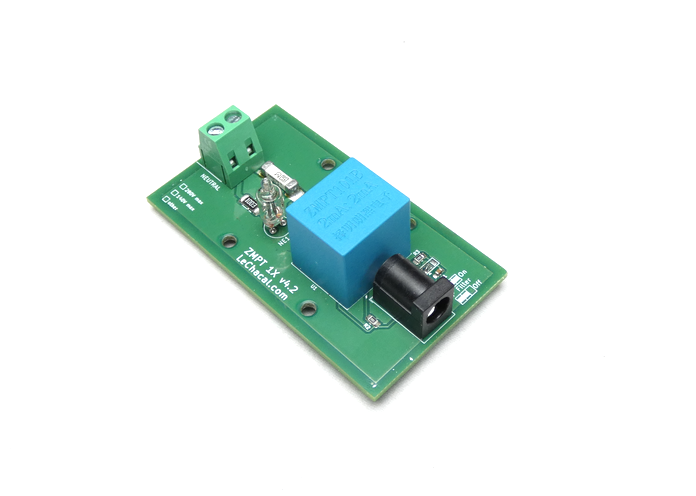

ZMPT module for single phase raspberrypi smart meter

  • Output AC has Jack power type for direct connection to RPICT with a Power Jack cable.

ZMPT module on DIN Rail for single phase raspberrypi smart meter

Mechanical

  • Dimensions: 45x30mm height 23mm.
  • 2 Holes 25mm apart for Din Rail mounting.

ZMPT module on DIN Rail for single phase raspberrypi smart meter

Technical Spec

Name Input Resistor Output Resistor (Ω) Sensitivity Range (rms) Comment
ZMPT_1X_225 160 kΩ 100 Ω 0.625 mV/V 0 to 225V Used to cover both 110 and 220V.
ZMPT_1X_140 100 kΩ 100 Ω 1 mV/V 0 to 140V For 110/120V use.
ZMPT_1X_280 200 kΩ 100 Ω 0.5 mV/V 0 to 280V For 220/240V use.
ZMPT_1X_420 300 kΩ 100 Ω 0.25 mV/V 0 to 420V
