Configuration for 3Phase firmware

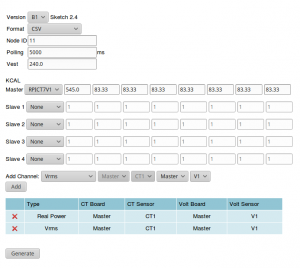

The online configurator can be used with the RPICT4W3T1. Use a single board of RPICT4V3 when editing the configuration.
Data Output
Using the manufacture firmware the data output is:
NodeID Vrms1 Vrms2 Vrms3 Realpower1 Realpower2 Realpower3 Irms1 Irms2 Irms3 Irms4 PF1 PF2 PF3 Temperature
Real Powers are computed using the following rules:
RealPower1 -> CT1 & V1
RealPower2 -> CT2 & V2
RealPower3 -> CT3 & V3
These rules can be modified in the configuration if needed.
Other output type can be streamed out. This should be configured in the unit.
All outputs type available are
- Vrms (V)
- Irms (mA)
- Real Power (W)
- Apparent Power (W)
- Power Factor
- Estimated Power
- Frequency
- Reactive Power
- Temperature
Files
3Phase sketch
This is the default firmware from manufacture.
This sketch can be loaded directly from the Raspberrypi following this guide and executing the commands below.
wget lechacal.com/RPICT/sketch/RPICT4V3_3Phase_V5_v1.2.ino.hex lcl-upload-sketch RPICT4V3_3Phase_V5_v1.2.ino.hex
