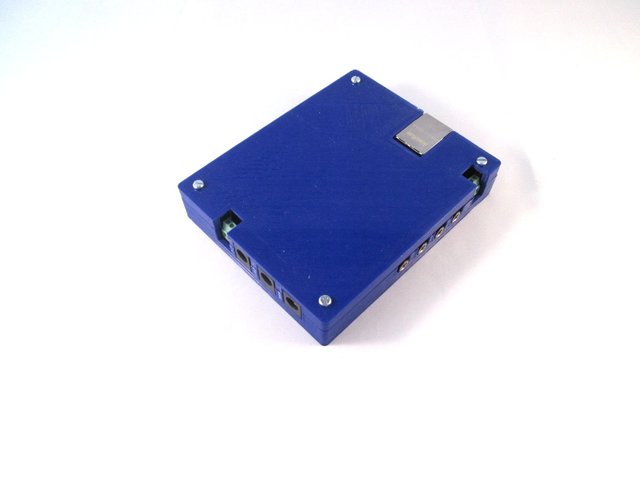

IMG 0859 small.jpg

EmonWRT Wifi Energy Monitoring Device with OpenWRT

Earlier version here

EmonWRT is a one unit system for energy monitoring. It measures usage of an electrical installation and post data on a server (Emoncms). You can then view the data on your computer or phone.

It combines the Arduino based microcontroller and OpenWRT wifi module together. EmonWRT interfaces with sensors like Current Transformers/ Temperature and Voltage.

The EmonWRT is currently for sale here.


  • Simple to use with web interface for configuration.
  • Connect with Wired or Wifi.
  • Wall mountable.
  • Single box system.
  • Open source components OpenWRT and Arduino.

EmonWRT vs Raspberry Pi. The main motivation for developing the EmonWRT was to increase robustness. For the long run the RaspberryPi solution can become vulnerable due to the operating system hosted on a SD card. High quality SD cards can be used but a higher risk of failure still remains. The EmonWRT contains the operating system on an embedded flash memory and will solidly keep on running.

Technical Specifications

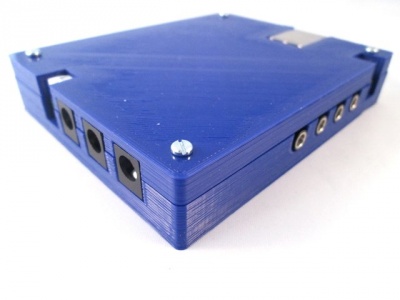

IMG 0856 small.jpg
  • 4 Current Sensor Ports
  • 1 Temperature Sensor Port
  • 3 AC/AC Adaptor Port
  • 1 Ethernet Port
  • 1 MicroUSB Power Supply port
  • Operating System: OpenWRT Barrier Breaker
  • Micro Controller Unit: Attiny84 (Arduino)
  • Current Sensor burden resistor: 24Ω
  • Wifi (internal antenna)
  • Dimensions: 106x86x19mm

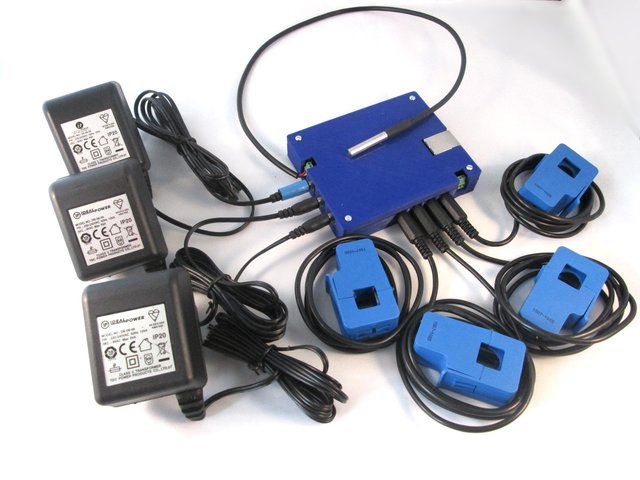

Recommended Sensors

Current: SCT-013-000
Temperature: DS18B20
AC/AC Adaptor: 77DB-06-09 77DE-06-09 77DA-10-09


IP Address (LAN):
IP Address (WAN): DHCP
Username: root
Password: admin


Internally the Arduino mcu collects data from sensors on the ADC port and transmit them to the OpenWRT module via serial interface.

Then the OpenWRT module transfer all data to the specified web server (Emoncms, thingspeak etc...) using conventional ethernet protocols.

The Arduino sketch can be uploaded to the board for custom applications. The default sketch is available on this page.

The configuration of the unit is quite simple using the Luci web interface that comes with OpenWRT. One can at easy configure the EmonWRT to connect to a home wireless router.


The web interface

OpenWRT uses Luci for configuration. The EmonWRT has a page on Luci where APikey, emoncms server and node ID can be configured.

Web emonwrt small 02.png

Apikey is the long number that identify the account on the Emoncms server. It can be found on the emoncms server in the API help page. The Read & Write apikey key should be copy pasted here.
EmonCMS Hostname is the location of the emoncms server to use. It can either be emoncms.org or your own server. If using your own emoncms server you might need to indicate the full path here. e.g.
Node ID is a number that identify the device. If you have several EmonWRT (or emontx) you can change this number here to differentiate between them on the server.

Background Configuration

The actual configuration is saved in a text configuration file /etc/config/emonwrt.

Arduino Sketch

The emontx has an attiny84 mcu which can be programmed with the Arduino IDE. To upload a sketch you will have to open the EmonWRT box and connect an avr programmer to the SPI port on the EmonWRT. The default arduino sketch can be found on this page. The library from OEM is also needed for this. It can be found here.

Serial String Format

If you decide to write your own sketch you need to output on serial interface the data in the following format:


CSV_DATA being each output field separated by a comma. Here is an example for three fields:

EMONWRT 75,45,4058
EMONWRT 79,51,4060

This format is necessary for the forwarder program in the WR703N.

Data Forwarder script

The WR703N router has a script written in bash to grab the data from the ARduino mcu and send them over to the emoncms server. This script is called emonwrt_forwarder.sh. You can download it below.
The script is launched when OpenWRT boots up using init.d mechanism.

RF Gateway

Previous version of EmonWRT used to have RF gateway. Due to lack of interest we have removed this option. Get in touch with us if you need a similar solution.


Default Attiny84 Sketch


Startup Guide

(old) Install/Update EmonWRT on WR703N

(New) Install/Update EmonWRT on WR703N

Start the forwarder in debug mode

Upload Firmware

Timeout for some wifi connections

Version History



EmonWRT Software


  • Support for OpenWRT Attitude Adjustment


  • Support for OpenWRT Barrier Breaker
